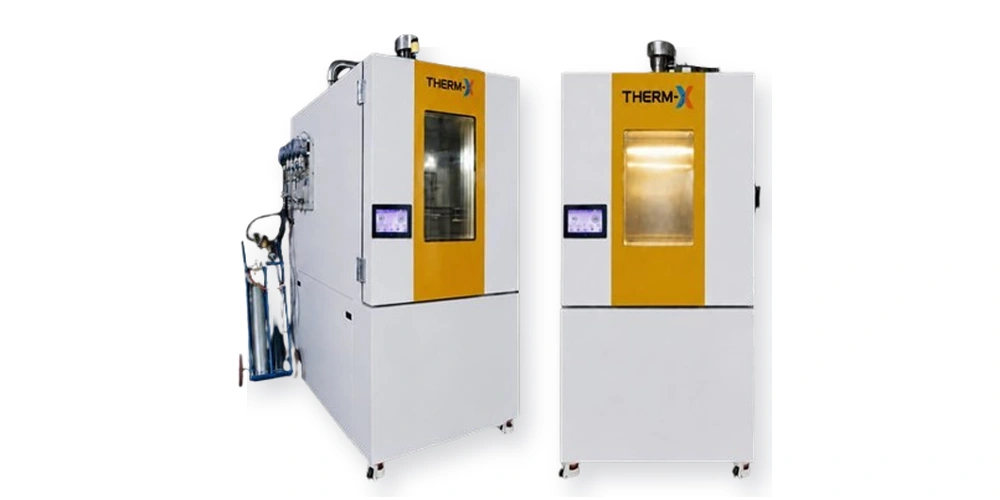

Battery Test Chambers are engineered for safe testing of lithium-ion and other energy-storage systems under controlled temperature conditions. Designed with multiple safety features, they support performance, life-cycle, and abuse testing for EV, energy-storage, and electronics battery validation. Custom chamber sizes are available on request.
Battery Test Chambers are engineered for safe testing of lithium-ion and other energy-storage systems under controlled temperature conditions. Designed with multiple safety features, they support performance, life-cycle, and abuse testing for EV, energy-storage, and electronics battery validation. Custom chamber sizes are available on request.
The specifications below reflect the current Therm-X product information. Custom chamber sizes and application-specific configurations are available on request where stated.
| Model Number | Volume | Internal Test Space (W × D × H) |
|---|---|---|
| XTB130 | 130 Liters | 550 × 400 × 600 mm |
| XTB260 | 260 Liters | 650 × 500 × 800 mm |
| XTB520 | 520 Liters | 800 × 770 × 850 mm |
| XTB1000 | 1000 Liters | 1000 × 1000 × 1000 mm |
| XTB1500 | 1500 Liters | 1000 × 1000 × 1500 mm |
| XTB2000 | 2000 Liters | 1250 × 1300 × 1250 mm |
| Parameter | Specification |
|---|---|
| Temperature Range | -40°C / -70°C to +180°C |
| Humidity Range | 10% RH to 95% RH |
| Temperature Stability | ±1°C |
| Humidity Stability | ±3% RH |
| Temperature Ramp Rate | 3°C/min to 20°C/min (model and load dependent) |
| Feature | Description |
|---|---|
| Inner Chamber Material | SS 304 stainless steel for corrosion resistance and long service life |
| Outer Structure | CRCA steel with high-quality powder-coated finish |
| Air Circulation | Uniform air circulation for accurate temperature and humidity distribution |
| Thermal Insulation | High-density insulation for superior energy efficiency |
| Refrigeration System | Robust mechanical refrigeration system for ultra-low temperature applications |
| Trays | Rod-type stainless steel trays for flexible sample placement |
| Illumination | Internal test-space illumination lamp |
| Cable Access | Cable access ports on both left and right sides |
| Mobility / Movement | Heavy-duty caster wheels with locking mechanism |
| Safety Features | Built-in protections for temperature, system, and compressor faults |
| Safety Feature | Description |
|---|---|
| Dual Door Safety System | Mechanical chain lock combined with an electromagnetic door lock to prevent accidental opening during testing |
| Fire Suppression System | Integrated system for rapid response to thermal-runaway or fire incidents |
| Gas Monitoring System | Sampling and monitoring of CO, HC, O₂, and H₂ for early fault detection |
| High-Temperature Safety Alarm | Immediate alert during abnormal temperature rise |
| Nitrogen Purging System | N₂ purging to inert the chamber and suppress combustion |
| EUcar Safety Compliance | Design compliant with EUcar battery-abuse testing requirements |
| Pressure Relief Valve | Controlled pressure release during abnormal pressure conditions |
| Burst Disc Protection | Emergency overpressure venting for maximum safety |
Share your test standard, specimen dimensions, operating range, load, and site utilities. Our engineering team will recommend the appropriate configuration.
Discuss Your Requirement →
