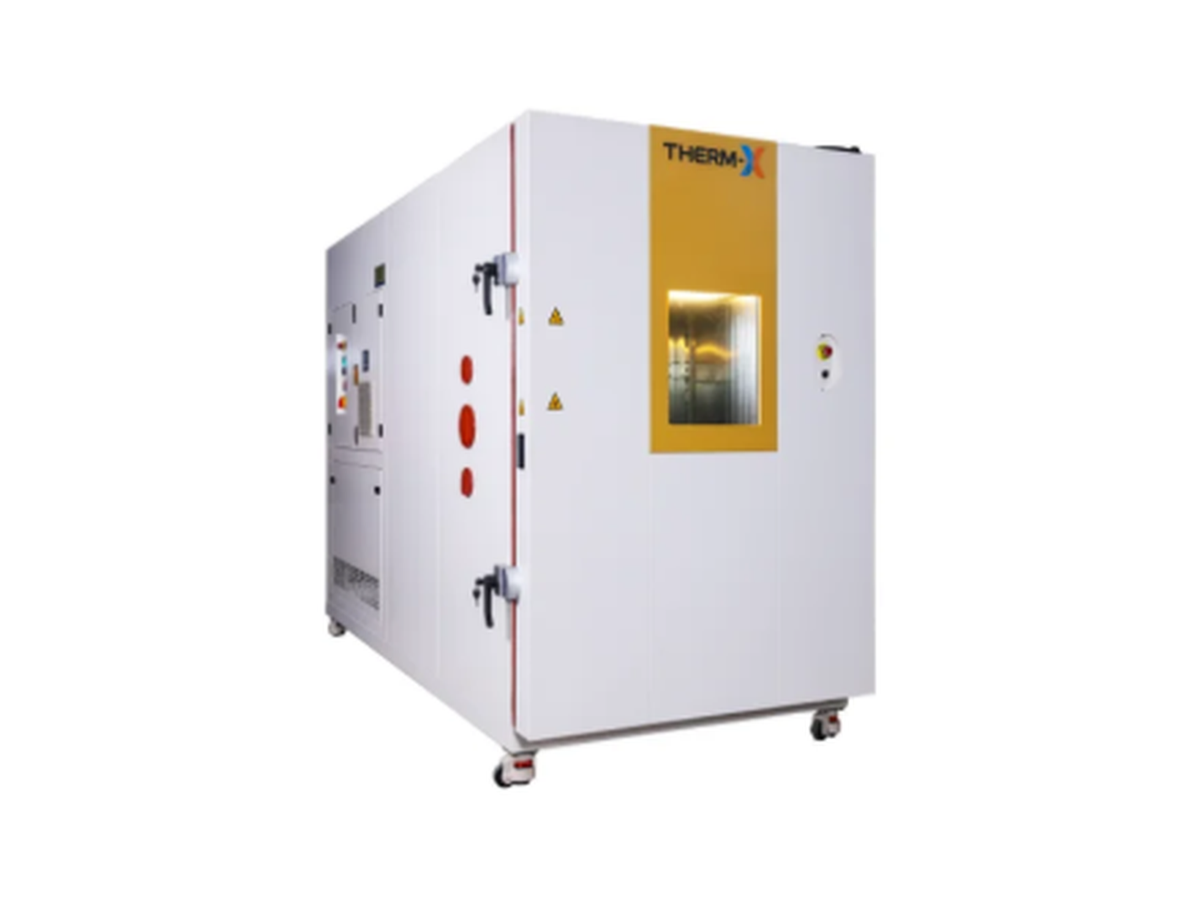

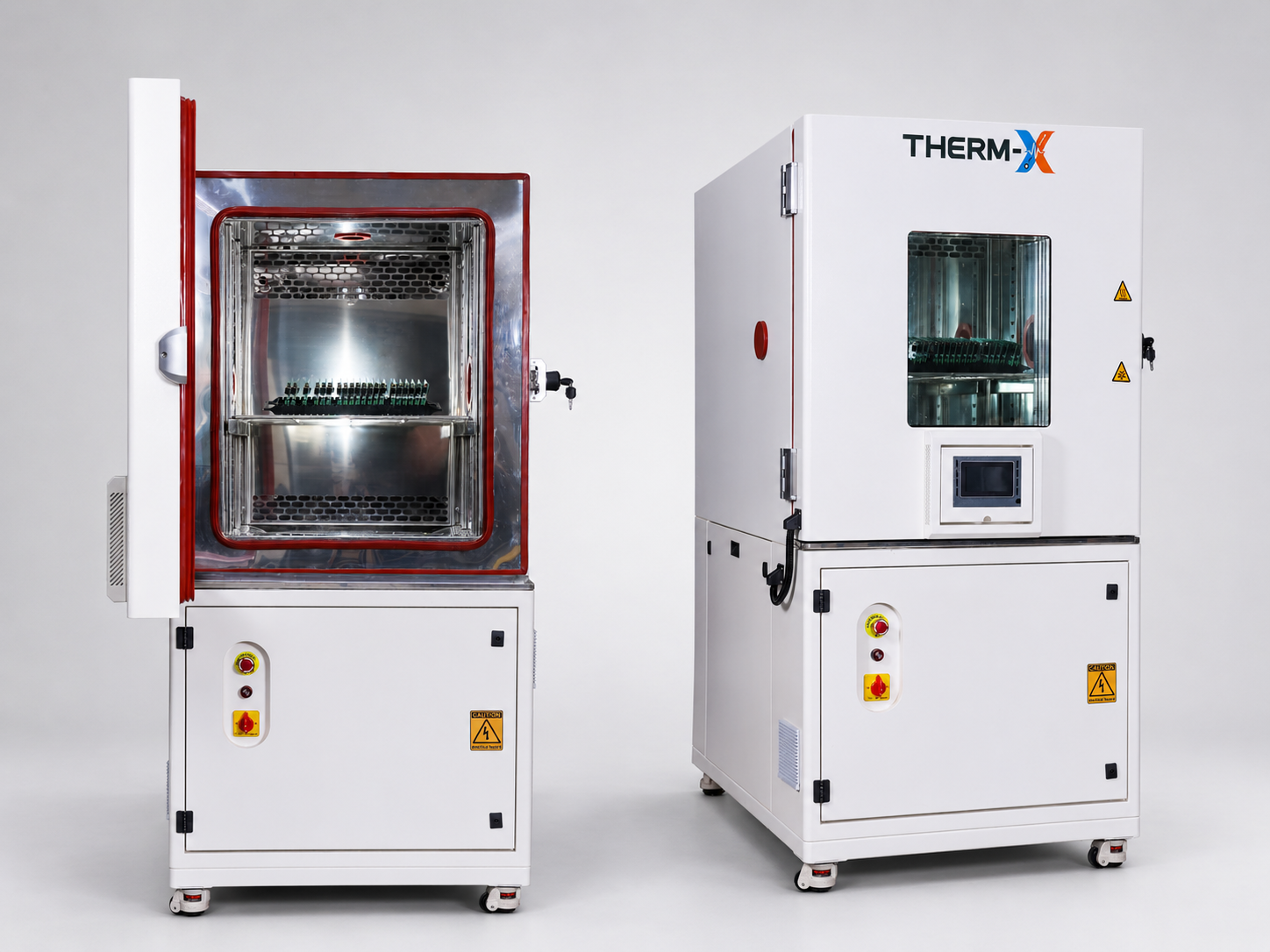

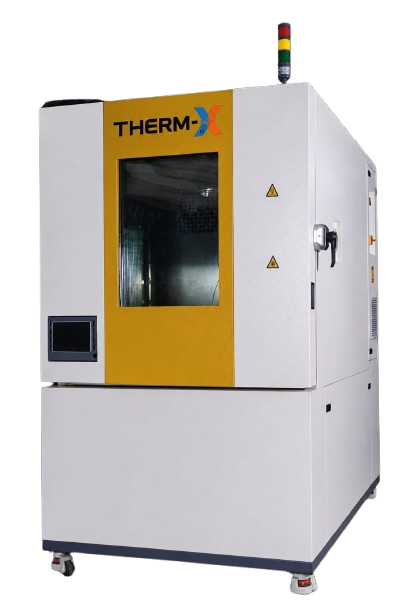

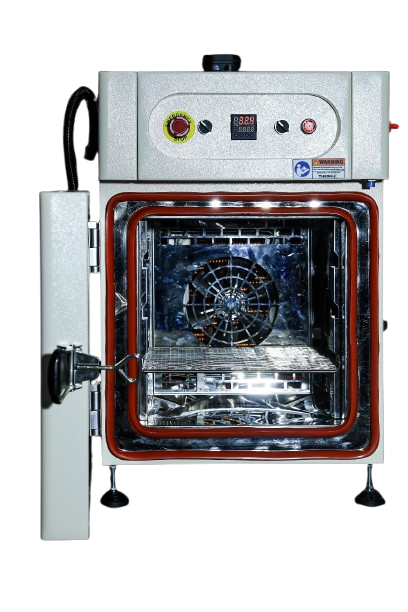

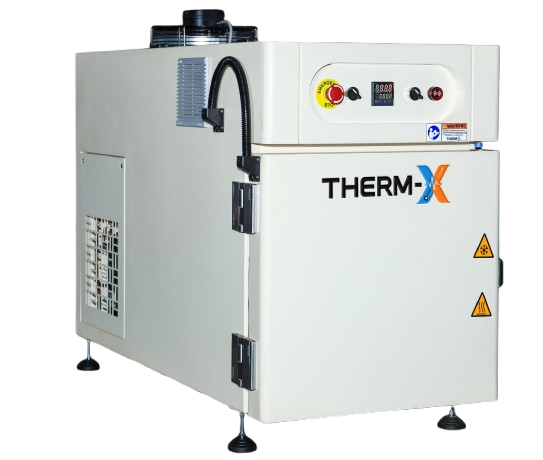

Environmental Test Chambers are engineered to accurately simulate extreme temperature and humidity conditions, replicating real-world environmental conditions and enabling precise evaluation of product performance, reliability, and durability. Designed for demanding industrial and laboratory environments, these chambers ensure consistent, repeatable, and standards-compliant testing.
Environmental Test Chambers are engineered to accurately simulate extreme temperature and humidity conditions, replicating real-world environmental conditions and enabling precise evaluation of product performance, reliability, and durability. Designed for demanding industrial and laboratory environments, these chambers ensure consistent, repeatable, and standards-compliant testing.
The specifications below reflect the current Therm-X product information. Custom chamber sizes and application-specific configurations are available on request where stated.
| Model Number | Volume | Internal Test Space (W × D × H) |
|---|---|---|
| XT60 | 60 Liters | 400 × 380 × 400 mm |
| XT130 | 130 Liters | 550 × 400 × 600 mm |
| XT260 | 260 Liters | 650 × 500 × 800 mm |
| XT520 | 520 Liters | 800 × 770 × 850 mm |
| XT1000 | 1000 Liters | 1000 × 1000 × 1000 mm |
| XT1500 | 1500 Liters | 1000 × 1000 × 1500 mm |
| XT2000 | 2000 Liters | 1250 × 1300 × 1250 mm |
| Parameter | Specification |
|---|---|
| Temperature Range | -40°C / -70°C to +180°C |
| Humidity Range | 10% RH to 95% RH |
| Temperature Stability | ±1°C |
| Humidity Stability | ±3% RH |
| Temperature Ramp Rate | 3°C/min to 20°C/min (model and load dependent) |
| Feature | Description |
|---|---|
| Inner Chamber Material | SS 304 stainless steel for corrosion resistance and long service life |
| Outer Structure | CRCA steel with high-quality powder-coated finish |
| Air Circulation | Uniform air circulation for accurate temperature and humidity distribution |
| Thermal Insulation | High-density insulation for superior energy efficiency |
| Refrigeration System | Robust mechanical refrigeration system for ultra-low temperature applications |
| Trays | Rod-type stainless steel trays for flexible sample placement |
| Illumination | Internal test-space illumination lamp |
| Cable Access | Cable access ports on both left and right sides |
| Control Panel | Front-mounted, easy-access control panel with intuitive operation |
| Mobility / Movement | Heavy-duty caster wheels with locking mechanism |
| Safety Features | Built-in protections for temperature, system, and compressor faults |
Share your test standard, specimen dimensions, operating range, load, and site utilities. Our engineering team will recommend the appropriate configuration.
